Stock #
SUPER SF
Hustler Super SF-60"
Call for Price
Overview
Specifications
features
key specs
engine
drive system
deck
construction
dimensions
literature
Documents

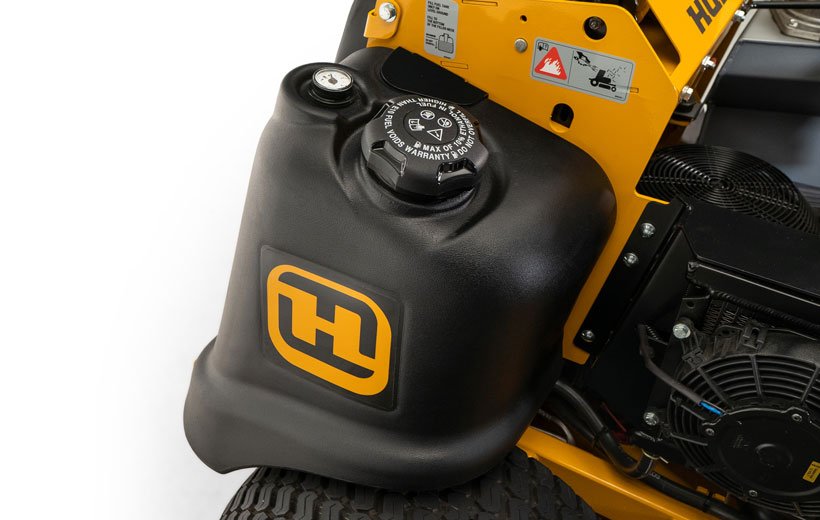

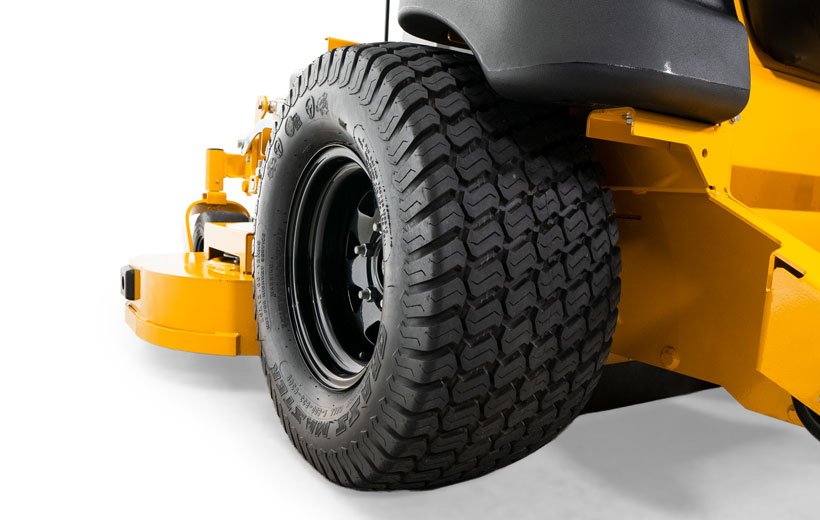

The Biggest, Fastest and Strongest Stand-on - Super SFThe Hustler Turf Super SF is the newest and biggest addition to our popular stand-on family of mowers. This monster mower is for the busy commercial contractor who needs to mow large properties with speed and precision. The Super SF comes equipped with dual fuel tanks, our newest fabricated VX deck, and at 26 inches, we've got the biggest tires in the stand-on game. With a heavy-duty hydraulic system including 21cc pumps and Parker wheel motors, the Super SF can reach speeds up to 15 mph. | ||||||
| ||||||
|
Model
Super SF
Category Name
Zero Turn Mowers
Year
2023
Sale Type
New
Manufacturer
HUSTLER
Features
|
|
|
|
|
|
|
|
|
|
|
|
WARRANTY
5 Year / 1200 Hour (First 2 Years No Hour Limit)
DRIVE TIRE
26 x 12-12
FRONT TIRE
13 x 6.5 - 6 semi-pneumatic
TRANSMISSION
Hydro-Gear 21cc pumps with Parker TG wheel motors
CUTTING WIDTH
60"
FUEL CAPACITY
13.9 gal.
CUTTING HEIGHT
2.0" to 5.5"
ENGINE HORSEPOWER
38.5, 40
GROUND SPEED (FWD)
Up to 15 mph (Using speed limiter: Up to 10 mph)
ENGINE MANUFACTURER

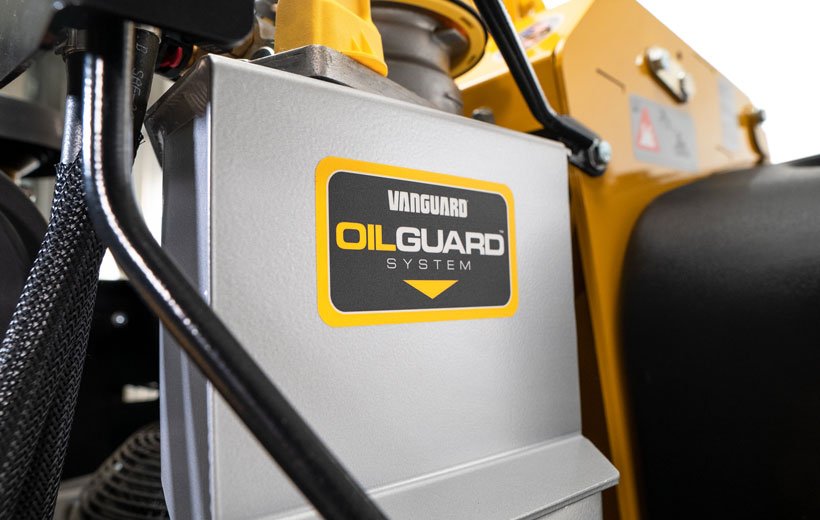

Kawasaki FX1000 EFI, Vanguard Big Block EFI Oil Guard
COOLING
Air Cooled
AIR CLEANER
FS: Oval, FX: Heavy duty canister
DISPLACEMENT
FX1000 EFI: 999cc, Vanguard: 993cc
ENGINE WARRANTY
3 Year Limited
ENGINE HORSEPOWER
38.5, 40
ENGINE MANUFACTURER
Kawasaki FX1000 EFI, Vanguard Big Block EFI Oil Guard
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear 21cc pumps with Parker TG wheel motors
FUEL CAPACITY
13.9 gal.
PARKING BRAKE
Hand operated drum brakes
HYDRAULIC COOLING
Oil Cooler w/ 8" fan
GROUND SPEED (FWD)
Up to 15 mph (Using speed limiter: Up to 10 mph)
RESERVOIR CAPACITY
6 quarts
SPINDLES
Ductile cast iron with steel shafts and sealed ball bearings
DECK LIFT
Electric actuator
DECK DEPTH
5.5"
BLADE LENGTH
20.50"
CUTTING WIDTH
60"
DECK MATERIAL
7 gauge w/ 7 gauge wrappers
CUTTING HEIGHT
2.0" to 5.5"
SPINDLE MOUNTS
Reinforced 7 gauge stamped disc
BLADE TIP SPEED
18,600
DECK ENGAGEMENT
Electric PTO Clutch
IMPACT TRIM AREA
11 ga. formed channel w/ rolled edge
NUMBER OF BLADES
3
FRAME
1.5" X 3" steel tubing
FRONT AXLE
Fabricated w/ tapered roller bearings
ENGINE PLATE
7 gauge
FRONT CASTER FORK
Fabricated 1/2" steel
OPERATOR PLATFORM
7 gauge
FRONT CASTER WHEEL
Tapered wheel bearings and debris cap
WEIGHT (LBS)
1450
HEIGHT (INCHES)
50
LENGTH (INCHES)
79.2
DRIVE TIRE (INCHES)
26 x 12-12
FRONT TIRE (INCHES)
13 x 6.5 - 6 semi-pneumatic
WIDTH W/ CHUTE UP (INCHES)
61.6
TIRE-TO-TIRE WIDTH (INCHES)
53.5
PRODUCTIVITY (ACRES PER HOUR)
7.27
