RAPTOR XD
Hustler Raptor XD- 60"
In Stock
Call for Price
Overview
Specifications
features
key specs
engine
drive system
deck
construction
general
dimensions
dimensions with catcher
literature
|
The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty. | ||||||||
| ||||||||
|
Model
Raptor XD
Category Name
Zero Turn Mowers
Year
2023
Sale Type
New
Manufacturer
HUSTLER
Features
|
|
|
|
|
|

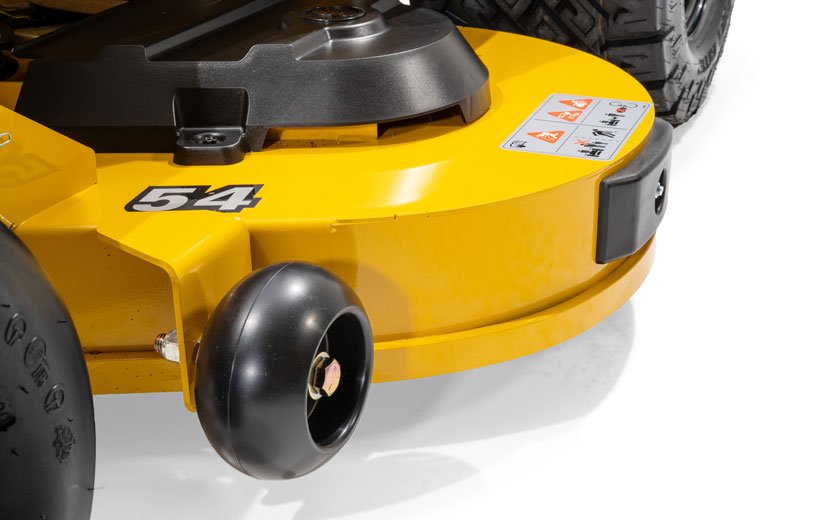

Welded Steel DeckWelded fabricated steel deck helps add durability and can extend the mower's life. |
Wider StanceDesigned to provide ample room adding to the comfort for the operator. |
SmoothTrak SteeringPrecision control designed to help trim and maneuver easily around obstacles. |
Bolstered SeatHelps provide a comfortable ride with armrests and airflow to the back. |
Rubber Floor MatHelps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models. |
Fabricated FrameContinuous one-piece 1½ inch by 3 inch welded tubular frame. |
Foot-Operated Deck LiftEasily adjust the deck height between 1.5” - 4.5”. |
Easy to ServiceFlip-up seat pan, removable floor pan, vented pulley covers. |

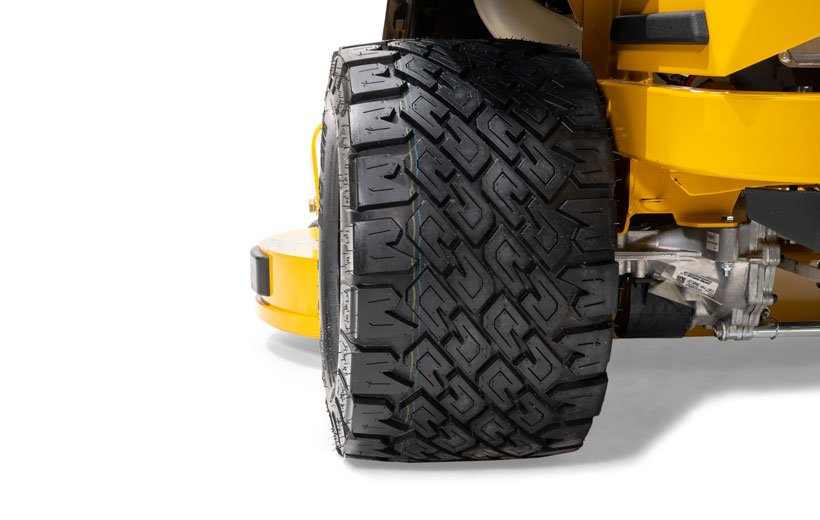

Exclusive BigBite Rear TiresWe worked directly with the tire manufacturer on this design. |
Kawasaki® PowerPowered by a V-Twin Kawasaki engine. |
WARRANTY
3 Year/300 hour residential
DRIVE TIRE
20 x 8-10 BigBite™
FRONT TIRE
13 x 6.5
TRANSMISSION
Hydro-Gear ZT-2800®
CUTTING WIDTH
60"
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
21.5
GROUND SPEED (FWD)
Up to 7.5 mph
ENGINE MANUFACTURER
Kawasaki FR651
COOLING
Air Cooled
DISPLACEMENT
726cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
21.5
ENGINE MANUFACTURER
Kawasaki FR651
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-2800®
FUEL CAPACITY
3 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 7.5 mph
SPINDLES
Aluminum with 1" shaft and double lip sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
4.5"
BLADE LENGTH
16.50"
CUTTING WIDTH
60"
DECK MATERIAL
Fabricated 11 gauge steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 gauge steel
BLADE TIP SPEED
18,500
DECK ENGAGEMENT
Ogura GT1.5
IMPACT TRIM AREA
3/8" x 1" steel bar
NUMBER OF BLADES
3
FRAME
1.5" X 3.0" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Sealed ball bearings
SEAT
Bolstered high-back seat with armrests and built-in lumbar support
CUP HOLDER
WEIGHT (LBS)
627
HEIGHT (INCHES)
43.7
LENGTH (INCHES)
69.3
DRIVE TIRE (INCHES)
20 x 8-10 BigBite™
FRONT TIRE (INCHES)
13 x 6.5
WIDTH W/ CHUTE UP (INCHES)
52.5
TIRE-TO-TIRE WIDTH (INCHES)
42
PRODUCTIVITY (ACRES PER HOUR)
2.91
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
63.5
MOWER LENGTH W/ CATCHER
91.4
